110/130BC系列 | |||
 |
|||
|
基本參數(General Specifications)：
步距角(step Angle)--------------- ----------- 1.5°/0.75°; 1.2°/0.6°(整步full/半步half）
步距角精度(Step Accuracy)---------------------------------------±5%(整步full,空載no load)
溫升(Temperature Rise)-------------------------------80K最大Max(rated current, 2 phases on).
環境溫度(Ambient Temperature Range)-------------------------------------------- -20℃~+50℃
絕緣電阻(Insulation Resistance)----------------------------------------- 100MΩ Min. 500VDC
絕緣介電強度（Dielectric Strength）--------------------------------950VAC 50Hz 1mA 1 Minute
絕緣等級(Insulation Class)---------------------------------------------------B級 (130Class)
徑向跳動(Shaft Radial Play)------------------------------------------- 0.02mm Max(300N Load)
軸向變形(Shaft Axial Play)------------------------------------------- 0.08 mm Max.(60N Load)
最大徑向力(Max. radial force)-------------------------------------220N(20mm from the flange)
最大軸向力(Max. axial force) -----------------------------------------------------------60N
旋轉方向(Rotation)------------------------------------------------ CW(See From Front Flange)
主要參數(Electrical Specifications)：
|
型 號 |
保持轉矩 |
電壓 |
電流 |
電阻 |
電感 |
步距角 |
空載運行頻率 |
轉動慣量 |
重量 |
|
110BF003 |
7.84 |
80-300 |
6 |
0.47 |
13.5 |
0.75 |
15 |
5 |
8.5 |
|
110BF004 |
4.96 |
30 |
4 |
3.5 |
30 |
0.75 |
12 |
3.75 |
5.5 |
|
110BC380C |
9.8 |
80-300 |
6 |
0.56 |
17.5 |
0.75 |
15 |
6.5 |
11 |
|
110BC380D |
5.5 |
80-300 |
6 |
0.37 |
12.5 |
0.75 |
15 |
4.1 |
6.0 |
|
110BC380F |
11.76 |
80-300 |
6 |
0.66 |
21.5 |
0.75 |
15 |
8.0 |
12 |
|
110BC380L |
7.84 |
80-300 |
6 |
0.47 |
13.5 |
0.75 |
15 |
5.0 |
8.5 |
|
110BC380M |
9.8 |
80-300 |
6 |
0.56 |
17.5 |
0.75 |
15 |
6.5 |
11 |
|
130BC3100 |
11.76 |
80-300 |
8 |
0.37 |
11 |
0.6 |
15 |
10.5 |
10 |
|
130BC3100A |
19.6 |
80-300 |
10 |
0.65 |
22 |
0.6 |
15 |
18.2 |
18 |
|
130BC3100B |
18 |
80-300 |
10 |
0.51 |
15 |
0.6 |
15 |
15 |
16 |
*以上產品為基本型，可根據用戶要求訂做派生：軸伸、電流、高低溫、密封等
外形尺寸(Dimensions):
|
尺寸 |
D |
B |
d1 |
L1 |
b |
D1 |
h |
h1 |
L |
D2 |
S |
M |
L2 |
L3 |
t |
|
110BF003 |
110 |
112 |
14 |
29 |
4 |
85 |
4 |
10 |
184 |
132 |
9 |
/ |
/ |
20 |
4.5 |
|
110BF004 |
110 |
112 |
11 |
29 |
4 |
85 |
4 |
10 |
110 |
132 |
9 |
/ |
/ |
20 |
3 |
|
110BC380C |
110 |
112 |
14 |
29 |
4 |
85 |
4 |
10 |
204 |
132 |
9 |
/ |
/ |
20 |
4.5 |
|
110BC380D |
110 |
112 |
14 |
29 |
4 |
85 |
4 |
10 |
154 |
132 |
9 |
/ |
/ |
20 |
4.5 |
|
110BC380F |
110 |
112 |
14 |
39 |
4 |
85 |
4 |
10 |
224 |
132 |
9 |
/ |
/ |
20 |
4.5 |
|
110BC380L |
110 |
112 |
14 |
39 |
/ |
85 |
4 |
10 |
184 |
132 |
9 |
/ |
/ |
/ |
/ |
|
110BC380M |
110 |
112 |
14 |
39 |
/ |
85 |
4 |
10 |
204 |
132 |
9 |
/ |
/ |
/ |
/ |
|
130BC3100 |
130 |
134 |
22錐1:10 |
58 |
6 |
100 |
5 |
12 |
178 |
155 |
11 |
M12×1.25 |
12 |
30 |
6.5 |
|
130BC3100A |
130 |
134 |
22錐1:10 |
58 |
6 |
100 |
5 |
12 |
238 |
155 |
11 |
M12×1.25 |
12 |
30 |
6.5 |
|
130BC3100B |
130 |
134 |
22錐1:10 |
58 |
6 |
100 |
5 |
12 |
208 |
155 |
11 |
M12×1.25 |
12 |
30 |
6.5 |

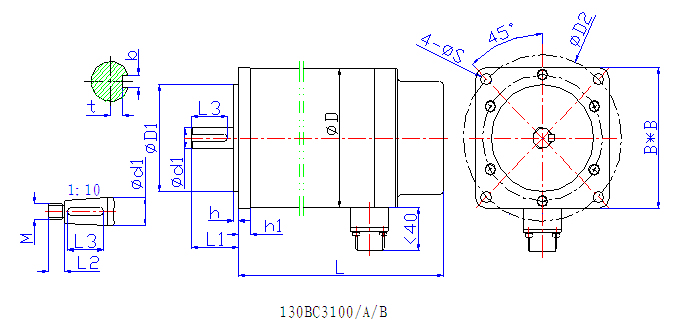

外形圖(Dimensions)：
接線方式：
電機采用航接插件方式,接法如下:
運行矩頻特性(Pull-out torque-pulse curve)（平均參考值）：
|
型 號 |
驅動器 |
驅動電壓 |
運行 |
運行矩頻特性（N.m/kHz） |
|
110BF003/110BC380L |
BQ-32206 |
200V DC |
0.75° |
5.0/1 5.0/2 4.5/4 3.9/6 2.5/8 2.0/10 1.5/12 |
|
110BC380C/M |
BQ-32206 |
200V DC |
0.75° |
8.0/1 8.0/2 7.0/4 6.5/6 4.0/8 3.0/10 2.0/12 |
|
110BF004 |
BQ-32206 |
200V DC |
0.75° |
3.1/1 3.1/2 2.9/4 2.5/6 2.0/8 1.6/10 1.0/12 |
|
110BC380F |
BQ-32206 |
200V DC |
0.75° |
9.5/1 9.0/2 7.5/4 6.5/6 4.0/8 3.0/10 2.0/12 |
|
130BC3100 |
BQ-32210 |
300V DC |
0.6° |
7.0/1 7.0/2 7.0/4 6.2/6 4.2/8 3.5/10 2.8/12 |
|
130BC3100A |
BQ-32210 |
300V DC |
0.6° |
15.0/1 15.0/2 12.5/4 8.5/6 7.2/8 6.0/10 4.0/12 |
|
130BC3100B |
BQ-32210 |
300V DC |
0.6° |
11.5/1 11.5/2 10.5/4 7.0/6 5.0/8 4.0/10 3.5/12 |
