基本參數：

步距角 ----------------------------------------------------------------------------------------------- 1.2° (整步)

步距角精度 ---------------------------------------------------------------------------------±5%(整步，空載)

電阻精度 ---------------------------------------------------------------------------------------------------±10%

電感精度 ---------------------------------------------------------------------------------------------------±20%

溫升 -----------------------------------------------------------------------80℃ Max (額定電流, 2相通電時)

環境溫度 ---------------------------------------------------------------------------------------  -20℃∽+50℃

絕緣電阻 ------------------------------------------------------------------------------  100MΩ Min. 500VDC

絕緣介電強度 --------------------------------------------------------------------500VAC 50Hz 1mA 1分鐘

絕緣等級------------------------------------------------------------------------------------------------------ B 級

主要參數:

*以上所列產品為基本型，可定制特殊要求的產品.

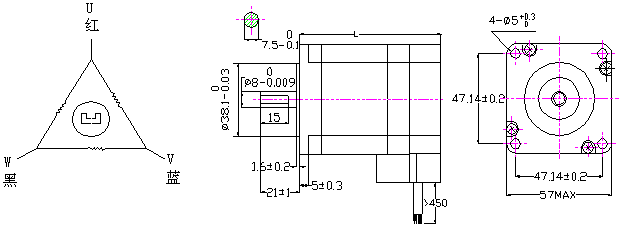

接線圖：                                       外形圖:
