86BYGH350系列 | |||
 |
|||
|
基本參數(General Specifications)：
步距角（Step Angle）--------------------------------------1.2°/0.6°(full step,half step)
步距角精度(Step Accuracy) ----------------------------------------±3.5´(0.72°, no load)
電阻精度（Resistance Accuracy）----------------------------------------------------±10%
電感精度(Inductance Accuracy) -----------------------------------------------------±20%
溫升(Temperature Rise)-------------------------------80℃ Max(rated current, 2 phases on)
環境溫度(Ambient Temperature Range)---------------------------------------- -20℃∽+50℃
絕緣電阻(Insulation Resistance)--------------------------------------- 500VDC 100MΩ Min
絕緣介電強度（Dielectric Strength）------------------------------750VAC 50Hz 1mA 1 Minute
絕緣等級(Insulation Class)-------------------------------------------------- B級(130℃級)
軸向變形(Shaft Axial Play)-------------------------------------------0.08mm Max(450g Load)
徑向跳動 (Shaft Radial Play)-----------------------------------------0.02mm Max(450g Load)
最大徑向力(Max. radial force) ------------------------------- 220N (20mm from the flange)
最大軸向力(Max. axial force) ------------------------------------------------------- 60N
旋轉方向(Rotation)-------------------------------------------------- CW(See from flange)
主要參數(Electrical Specifications)：
|
型 號 |
相數 |
機身長L |
保持轉矩 |
電壓 |
相電流Current |
轉動慣量 |
引出線數 |
重量Weight |
|
|
Φ60止口 |
Φ73止口 |
|
mm |
N.m |
VDC |
A |
Kg.cm² |
|
Kg |
|
86BYGH350A-01 |
86BYGH350A-01-01 |
3 |
70 |
2.5 |
80-325 |
1.75 |
1.1 |
6 |
1.65 |
|
86BYGH350A-02 |
86BYGH350A-02-01 |
3 |
70 |
2.5 |
24-40 |
5.8 |
1.1 |
6 |
1.65 |
|
86BYGH350A-03 |
86BYGH350A-03-01 |
3 |
70 |
2.5 |
24-110 |
3 |
1.1 |
6 |
1.65 |
|
86BYGH350B-01 |
86BYGH350B-01-01 |
3 |
101 |
5.0 |
80-325 |
2 |
2.2 |
6 |
3.3 |
|
86BYGH350B-02 |
86BYGH350B-02-01 |
3 |
101 |
5.0 |
24-40 |
5.8 |
2.2 |
6 |
3.3 |
|
86BYGH350B-03 |
86BYGH350B-03-01 |
3 |
101 |
5.0 |
24-110 |
3 |
2.2 |
6 |
3.3 |
|
86BYGH350C-01 |
86BYGH350C-01-01 |
3 |
130 |
7.5 |
80-325 |
2.25 |
3.3 |
6 |
3.8 |
|
86BYGH350C-02 |
86BYGH350C-02-01 |
3 |
130 |
7.5 |
24-40 |
5.8 |
3.3 |
6 |
3.8 |
|
86BYGH350C-03 |
86BYGH350C-03-01 |
3 |
130 |
7.5 |
24-110 |
3 |
3.3 |
6 |
3.8 |
|
86BYGH350D-01 |
86BYGH350D-01-01 |
3 |
162.5 |
10.0 |
80-325 |
2.4 |
4.4 |
6 |
5.5 |
|
86BYGH350D-02 |
86BYGH350D-02-01 |
3 |
162.5 |
10.0 |
24-40 |
5.8 |
4.4 |
6 |
5.5 |
|
86BYGH350D-03 |
86BYGH350D-03-01 |
3 |
162.5 |
10.0 |
24-110 |
3 |
4.4 |
6 |
5.5 |
*以上產品為基本型，可根據用戶要求訂做派生：軸伸、電流、高低溫、密封等
接線圖（Wiring Diagram）：

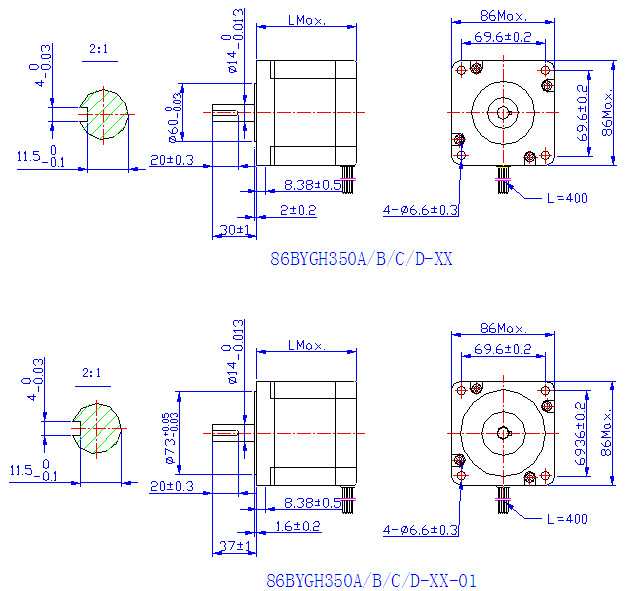

外形圖(Dimensions)：

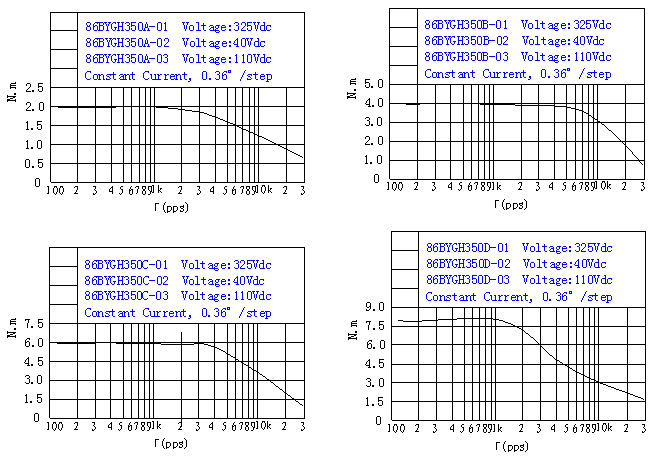

運行矩頻特性(Pull-out Torque-pulse curve)：
