86BYGH550系列 | |||
 |
|||
|
基本參數(General Specifications)：
步距角（Step Angle）--------------------------------------0.72°/0.36°(full step/half step)
步距角精度(Step Angle Accuracy)--------------------------------±3.5′(full step, no load)
電阻精度（Resistance Accuracy）------------------------------------------------------±10%
電感精度(Inductance Accuracy) ------------------------------------------------------±20%
溫升(Temperature Rise)---------------------------------85℃ Max(rated current, 4 phases on)
環境溫度(Ambient Temperature Range)---------------------------------------- -25℃∽+40℃
絕緣電阻(Insulation Resistance)-------------------------------------- 100MΩ Min. 500VDC
絕緣介電強度（Dielectric Strength）----------------------------- 750VAC 50Hz 1mA 1 Minute
絕緣等級(Insulation Class)-------------------------------------------------- B級(130℃級)
軸向變形(Shaft Axial Play)-------------------------------------------0.08mm Max(450g Load)
徑向跳動 (Shaft Radial Play)-----------------------------------------0.02mm Max(450g Load)
最大徑向力(Max. radial force) ------------------------------- 220N (20mm from the flange)
最大軸向力(Max. axial force) ------------------------------------------------------- 60N
旋轉方向(Rotation)--------------------------------------------- CW(See From Front Flange)
主要參數(Electrical Specifications)：
|
型 號 |
機身長L |
電壓 |
電流 |
電阻 |
電感 |
保持 |
定位 |
轉動 |
重量 |
|
|
單軸伸 |
雙軸伸 |
mm |
VDC |
A |
Ω |
mH |
N.m |
N.m |
Kg.cm² |
Kg |
|
86BYGH550A |
86BYGH550AS |
70 |
24-90 |
2.8 |
0.57 |
2 |
2.1 |
0.07 |
0.9 |
1.8 |
|
86BYGH550A-01 |
86BYGH550AS-01 |
70 |
24-110 |
1.4 |
1.76 |
8 |
2.1 |
0.07 |
0.9 |
1.8 |
|
86BYGH550B |
86BYGH550BS |
101 |
24-90 |
2.8 |
0.75 |
4 |
4.1 |
0.08 |
2.9 |
3.2 |
|
86BYGH550B-01 |
86BYGH550BS-01 |
101 |
24-110 |
1.4 |
2.73 |
16 |
4.1 |
0.08 |
2.9 |
3.2 |
|
86BYGH550C |
86BYGH550CS |
130 |
24-90 |
2.8 |
0.85 |
6 |
6.3 |
0.1 |
4.3 |
4.6 |
|
86BYGH550C-01 |
86BYGH550CS-01 |
130 |
24-110 |
1.4 |
3.40 |
24 |
6.3 |
0.1 |
4.3 |
4.6 |
以上產品為基本型，可根據用戶要求訂做派生：軸伸、電流、高低溫、密封等
接線圖（Wiring Diagram）：

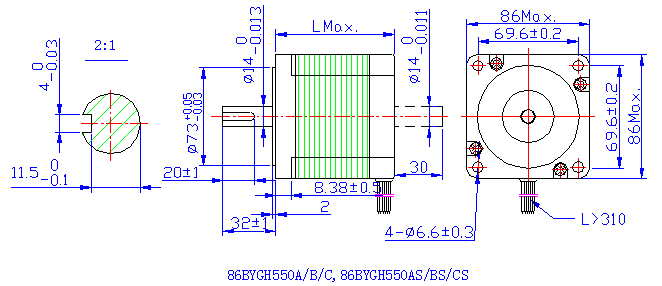

外形圖(Dimensions)：
運行矩頻特性(Pull-out Torque-pulse curve)：
|
型 號 |
驅動器 |
步距角 |
運行矩頻特性（N.m/kHz） |
|
|
86BYGH550A |
86BYGH550AS |
BQH503 |
0.36° |
2/1 2/2 1.6/4 1.4/6 1.2/8 1.0/10 0.8/12 0.6/15 0.3/20 |
|
86BYGH550B |
86BYGH550BS86BYGH550BS-01 |
BQH503 |
0.36° |
4/1 4/2 3.1/4 2.8/6 2.5/8 2/10 1.6/12 1.1/15 0.4/20 |
|
86BYGH550C |
86BYGH550CS86BYGH550CS-01 |
BQH503 |
0.36° |
6/1 6/2 4.5/4 4/6 3.2/8 2.5/10 1.6/12 1.2/15 0.8/20 |
