86BYGH450系列 | |||
 |
|||
|
基本參數(General Specifications)：
步距角（Step Angle）--------------------------------------- 1.8°/0.9°(full step/ half step)
步距角精度(Step Angle Accuracy)------------------------------------±5%(full step, no load)
電阻精度（Resistance Accuracy）------------------------------------------------------±10%
電感精度(Inductance Accuracy) ------------------------------------------------------±20%
溫升(Temperature Rise)---------------------------------80℃ Max(rated current, 2 phases on)
環境溫度(Ambient Temperature Range)--------------------------------------- -20℃∽+50℃
絕緣電阻(Insulation Resistance)------------------------------------- 100MΩ Min. 500VDC
絕緣介電強度（Dielectric Strength）---------------------------- 750VAC 50Hz 1mA 1 Minute
絕緣等級(Insulation Class)-------------------------------------------------- B級(130℃級)
軸向變形(Shaft Axial Play)-------------------------------------------0.08mm Max(450g Load)
徑向跳動 (Shaft Radial Play)-----------------------------------------0.02mm Max(450g Load)
最大徑向力(Max. radial force) ------------------------------- 220N (20mm from the flange)
最大軸向力(Max. axial force) ------------------------------------------------------- 60N
旋轉方向(Rotation)--------------------------------------------- CW(See From Front Flange)
主要參數(Electrical Specifications)：
|
型 號 |
機身長L |
保持轉矩 |
電壓 |
電流 |
電阻 |
電感 |
轉動慣量 |
引出線數 |
定位力矩 |
重量 |
|
|
兩相 |
一相 |
||||||||||
|
86BYGH450A-01 |
70.5 |
3.4 |
2.6 |
2.4 |
2 |
2.6 |
9.5 |
1 |
8 |
0.12 |
2.1 |
|
86BYGH450A-02 |
70.5 |
3.4 |
2.6 |
3.6 |
3 |
1.2 |
4.0 |
1 |
8 |
0.12 |
2.1 |
|
86BYGH250A-01 |
70.5 |
3.4 |
2.6 |
4.8 |
4 |
0.8 |
4.8 |
1 |
4 |
0.12 |
2.1 |
|
86BYGH250A-02 |
70.5 |
3.4 |
2.6 |
6.4 |
5.9 |
0.28 |
1.7 |
1 |
4 |
0.12 |
2.1 |
|
86BYGH450B-01 |
101.5 |
7.28 |
5.2 |
2.4 |
2 |
4.2 |
20 |
2.7 |
8 |
0.24 |
3.3 |
|
86BYGH450B-02 |
101.5 |
7.28 |
5.2 |
1.8 |
3 |
1.8 |
7.5 |
2.7 |
8 |
0.24 |
3.3 |
|
86BYGH250B-01 |
101.5 |
7.28 |
5.2 |
4.8 |
4 |
1.4 |
20 |
2.7 |
4 |
0.24 |
3.3 |
|
86BYGH250B-02 |
101.5 |
7.28 |
5.2 |
2.4 |
6 |
0.5 |
4.8 |
2.7 |
4 |
0.24 |
3.3 |
|
86BYGH450C-01 |
130.5 |
10.2 |
7.8 |
6.4 |
2 |
5.8 |
30 |
4 |
8 |
0.36 |
4 |
|
86BYGH450C-02 |
130.5 |
10.2 |
7.8 |
6.4 |
4 |
0.45 |
7.5 |
4 |
8 |
0.36 |
4 |
|
86BYGH250C-01 |
130.5 |
10.2 |
7.8 |
3.2 |
4 |
1.7 |
7.0 |
4 |
4 |
0.36 |
4 |
|
86BYGH250C-02 |
130.5 |
10.2 |
7.8 |
2.5 |
6 |
0.55 |
4.5 |
4 |
4 |
0.36 |
4 |
|
86BYGH450D-01 |
162.5 |
13.57 |
10.4 |
2.72 |
2 |
7.0 |
42 |
5.1 |
8 |
0.48 |
5.5 |
|
86BYGH450D-02 |
162.5 |
13.57 |
10.4 |
4.8 |
3 |
4.4 |
21 |
5.1 |
8 |
0.48 |
5.5 |
|
86BYGH450D-03 |
162.5 |
13.57 |
10.4 |
14 |
4 |
3.5 |
10 |
5.1 |
8 |
0.48 |
5.5 |
|
86BYGH250D-01 |
162.5 |
13.57 |
10.4 |
3.6 |
4 |
2.1 |
14.5 |
5.1 |
4 |
0.48 |
5.5 |
|
86BYGH250D-02 |
162.5 |
13.57 |
10.4 |
4.8 |
6 |
0.65 |
6.0 |
5.1 |
4 |
0.48 |
5.5 |
*以上產品為基本型，可根據用戶要求訂做派生：軸伸、電流、高低溫、密封等

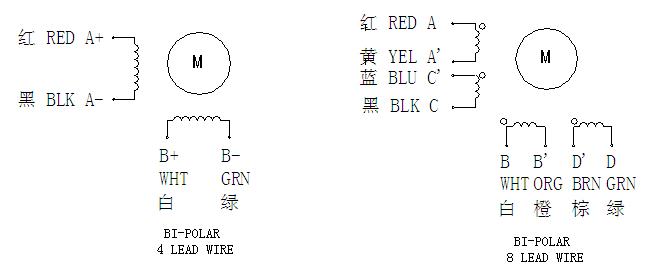

接線圖（Wiring Diagram）：

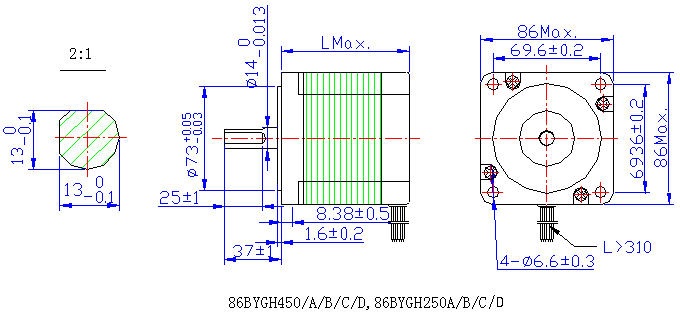

外形圖(Dimensions)：

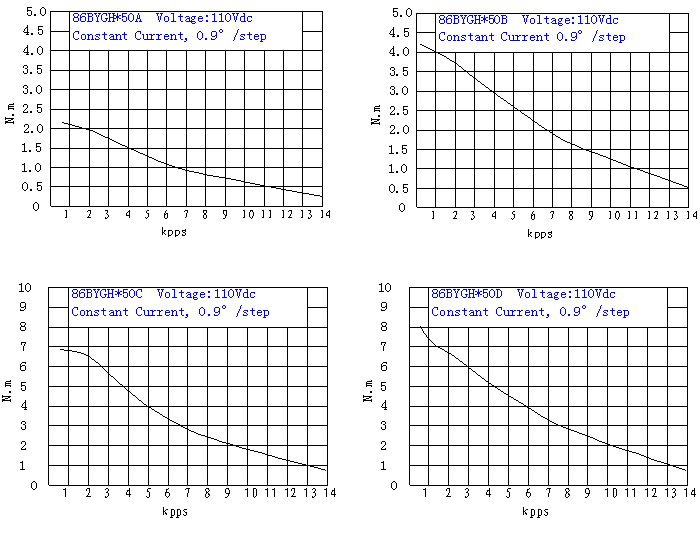

運行矩頻特性(Pull-out Torque-pulse curve)：
