57BYGH350系列

基本參數(General Specifications)：
步距角（Step Angle）--------------------------------------- 1.2°/0.6°(full step/ half step)
步距角精度(Step Angle Accuracy)--------------------------------------±3.5′(0.72°, no load)
電阻精度（Resistance Accuracy）-------------------------------------------------------±10%
電感精度(Inductance Accuracy) --------------------------------------------------------±20%
溫升(Temperature Rise)---------------------------------80℃ Max(rated current, 2 phases on)
環境溫度(Ambient Temperature Range)------------------------------------------  -20℃∽+50℃
絕緣電阻(Insulation Resistance)----------------------------------------  100MΩ Min. 500VDC
絕緣介電強度（Dielectric Strength）------------------------------- 500VAC 50Hz 1mA 1 Minute
絕緣等級(Insulation Class)---------------------------------------------------- B級(130℃級)
軸向變形(Shaft Axial Play)--------------------------------------------0.08mm Max(450g Load)
徑向跳動 (Shaft Radial Play)------------------------------------------0.02mm Max(450g Load)
最大徑向力(Max. radial force) ---------------------------------- 75N (20mm from the flange)
最大軸向力(Max. axial force) --------------------------------------------------------- 15N
旋轉方向(Rotation)----------------------------------------------- CW(See From Front Flange)

主要參數(Electrical Specifications):


*以上產品為基本型，可根據用戶要求訂做派生：軸伸、電流、高低溫、密封等

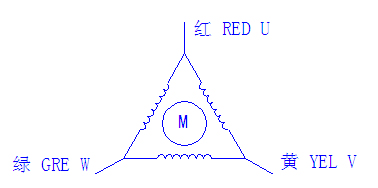

接線圖（Wiring Diagram）：

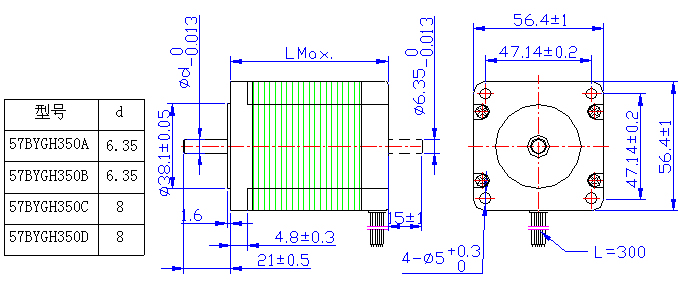

外形圖(Dimensions)：

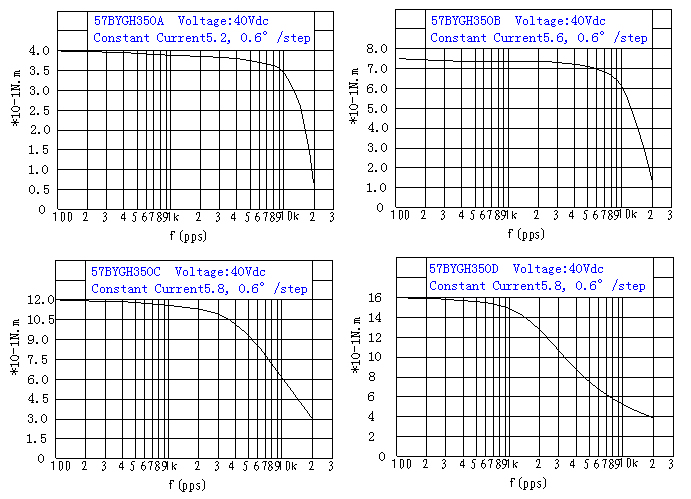

運行矩頻特性(Pull-out Torque-pulse curve)：
