90BYG系列 | |||
 |
|||
|
基本參數(General Specifications)：
步距角（Step Angle）-----------1.8°/0.9°;1.2°/0.6°;0.72°/0.36°(full step/half step)
步距角精度(Step Accuracy) ---------------------------------------±5%(full step, no load)
電阻精度（Resistance Accuracy）----------------------------------------------------±10%
電感精度(Inductance Accuracy) -----------------------------------------------------±20%
溫升(Temperature Rise)--------------------------------------------80℃ Max(rated current)
環境溫度(Ambient Temperature Range)---------------------------------------- -20℃∽+50℃
絕緣電阻(Insulation Resistance)-------------------------------------- 500VDC 100MΩ Min
絕緣介電強度（Dielectric Strength）-----------------------------750VAC 50Hz 1mA 1 Minute
絕緣等級(Insulation Class)-------------------------------------------------- F級(155℃級)
軸向變形(Shaft Axial Play)-------------------------------------------0.08mm Max(450g Load)
徑向跳動 (Shaft Radial Play)-----------------------------------------0.02mm Max(450g Load)
最大徑向力(Max. radial force) ------------------------------- 220N (20mm from the flange)
最大軸向力(Max. axial force) ------------------------------------------------------- 60N
旋轉方向(Rotation)--------------------------------------------------- CW(See from flange)
主要參數(Electrical Specifications)：
|
型 號 |
相數 |
機身長L |
保持轉矩 |
電壓 |
電流 |
電阻 |
電感 |
轉動 |
航插芯數 |
重量 |
|
mm |
N.m |
VDC |
A |
Ω |
mH |
Kg.cm² |
|
Kg |
||
|
90BYG250A |
2 |
75 |
2.5 |
40--110 |
4 |
0.47 |
4.6 |
1.2 |
5 |
2.5 |
|
90BYG250B |
2 |
105 |
5.0 |
40--110 |
4 |
0.95 |
9.3 |
2.4 |
5 |
4.0 |
|
90BYG250C |
2 |
135 |
7.5 |
40--110 |
4 |
1.4 |
18.5 |
3.6 |
5 |
5.5 |
|
90BYG250D |
2 |
165 |
10.0 |
40--110 |
4 |
1.85 |
25 |
4.8 |
5 |
7.0 |
|
90BYG350A |
3 |
75 |
2.26 |
24-150 |
3 |
0.6 |
3.5 |
1.2 |
5 |
2.5 |
|
90BYG350B |
3 |
105 |
4.52 |
24-150 |
3 |
1.15 |
7.0 |
2.4 |
5 |
4.0 |
|
90BYG350C |
3 |
135 |
6.78 |
24-150 |
3 |
1.7 |
10.5 |
3.6 |
5 |
5.5 |
|
90BYG350D |
3 |
165 |
9.04 |
24-150 |
3 |
2.2 |
14 |
4.8 |
5 |
7.0 |
|
90BYG550A |
5 |
75 |
2.2 |
50 |
3 |
0.3 |
3 |
1.2 |
7 |
2.5 |
|
90BYG550B |
5 |
105 |
4.4 |
50 |
3 |
0.58 |
6 |
2.4 |
7 |
4.0 |
|
90BYG550C |
5 |
135 |
6.6 |
50 |
3 |
0.85 |
9 |
3.6 |
7 |
5.5 |
|
90BYG550D |
5 |
165 |
8.8 |
80 |
3 |
1.0 |
12 |
4.8 |
7 |
7.0 |
*以上產品為基本型，可根據用戶要求訂做派生：軸伸、電流、高低溫、密封等
接線圖（Wiring Diagram）：

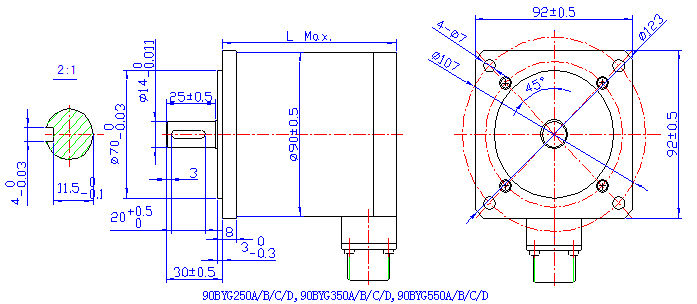

外形圖(Dimensions)：

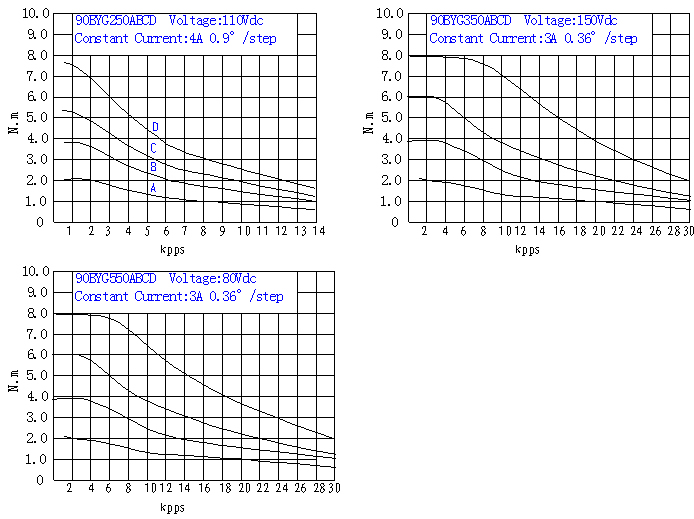

運行矩頻特性(Pull-out Torque-pulse curve):
