基本參數：

步距角 -------------------------------------------------------------------------------------------------------------- 1.2° (整步)

步距角精度 ------------------------------------------------------------------------------------------------±5%(整步，空載)

電阻精度 ------------------------------------------------------------------------------------------------------------------±10%

電感精度 ------------------------------------------------------------------------------------------------------------------±20%

溫升 -------------------------------------------------------------------------------------80℃ Max (額定電流, 2相通電時)

環境溫度 ------------------------------------------------------------------------------------------------------  -20℃∽+50℃

絕緣電阻 -------------------------------------------------------------------------------------------- 100MΩ Min. 500VDC

絕緣介電強度 ---------------------------------------------------------------------------------750VAC 50Hz 1mA 1分鐘

絕緣等級------------------------------------------------------------------------------------------------------------------- B 級

主要參數:

*以上所列產品為基本型，可定制特殊要求的產品

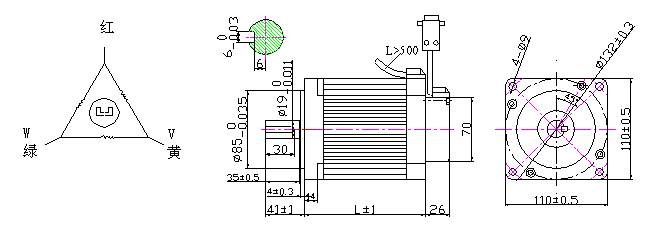

接線圖：              外形圖：
